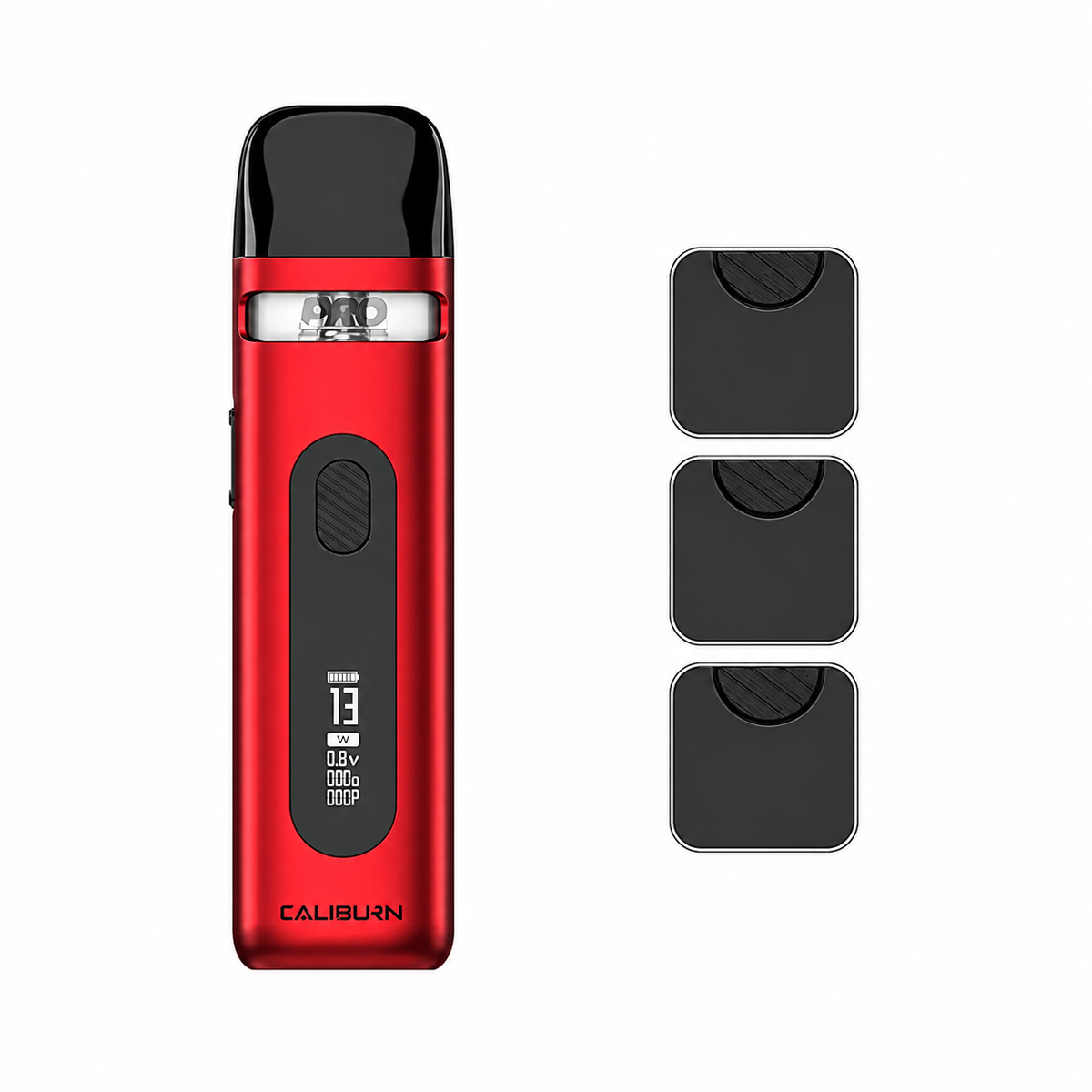

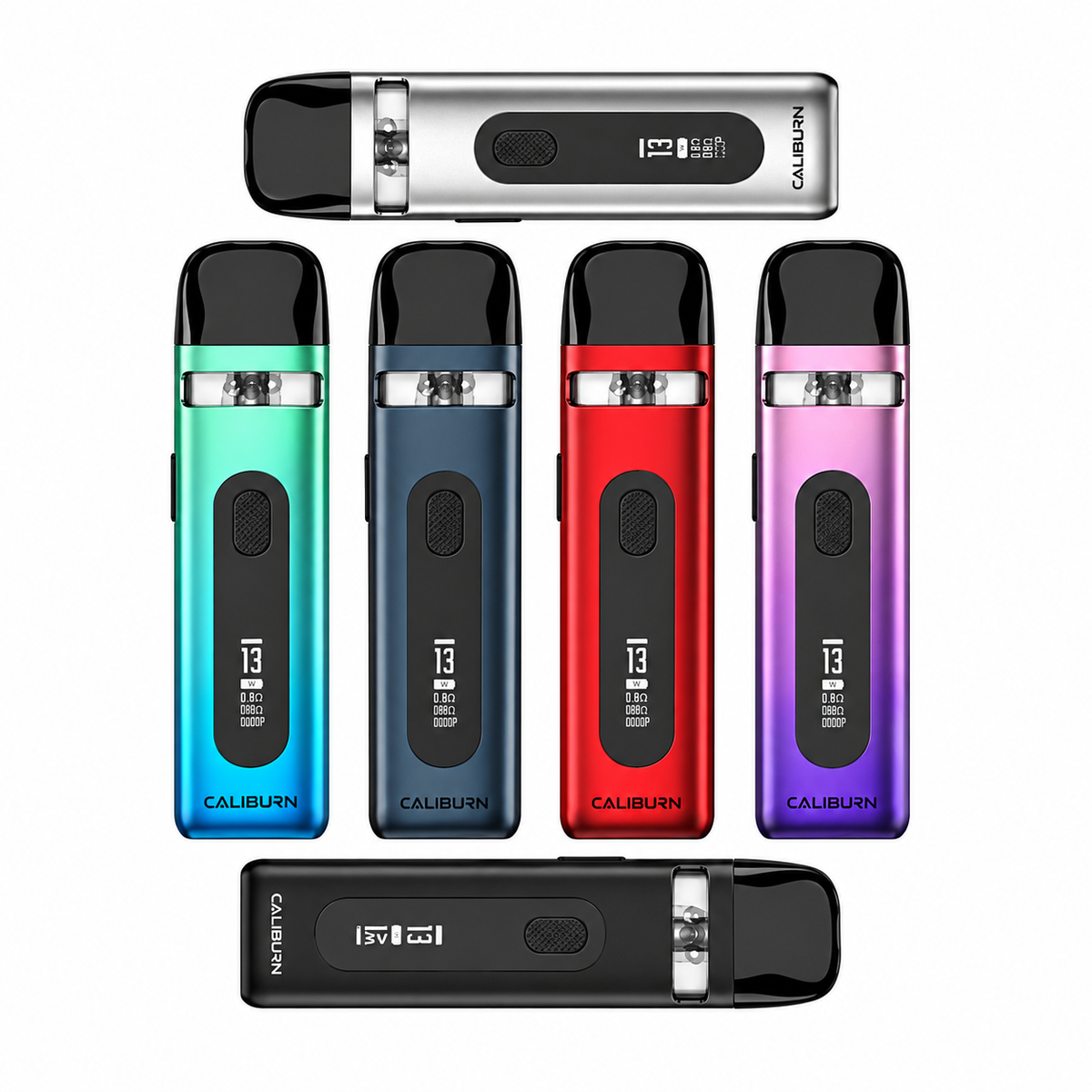

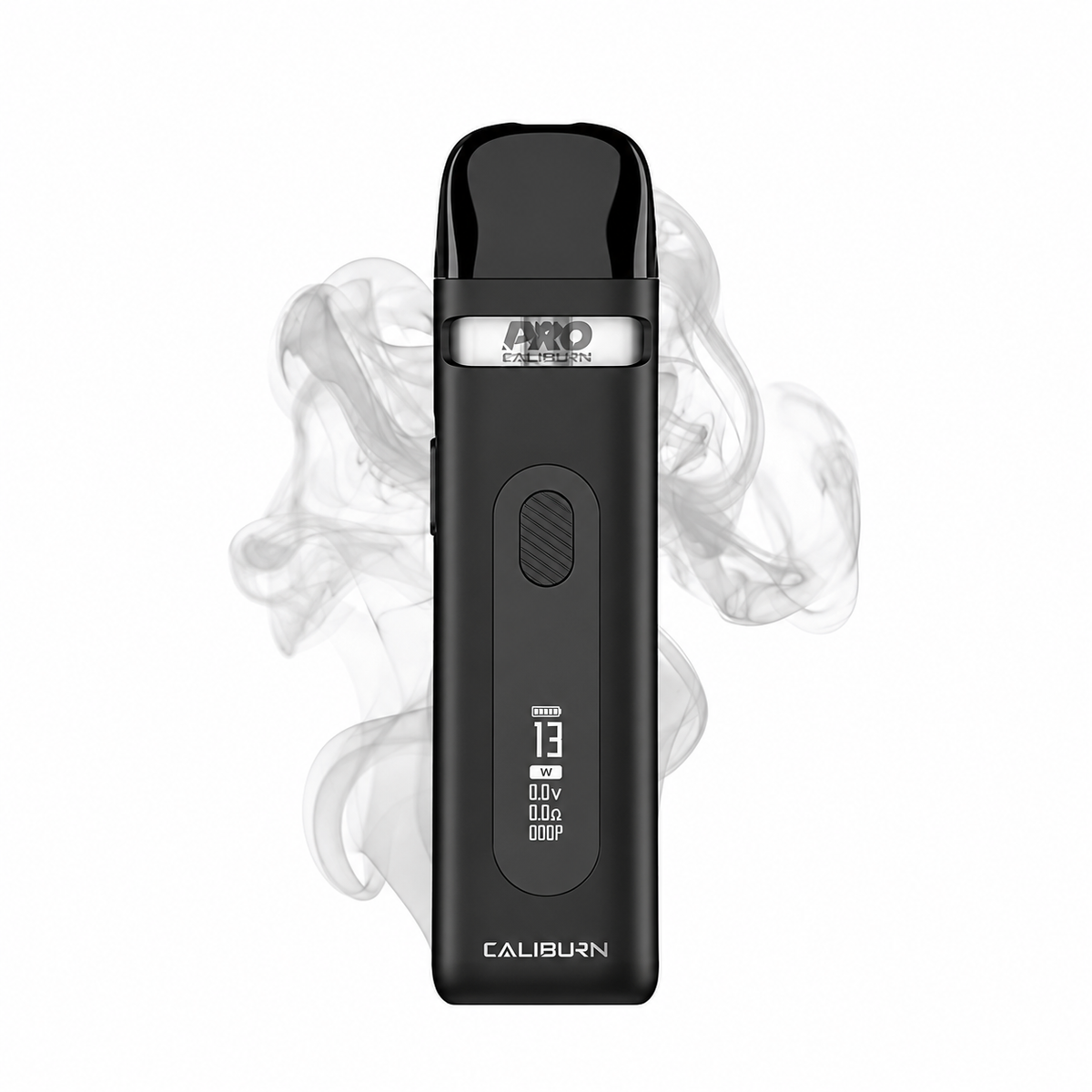

UWELL CALIBURN X Pod Kit – 20W Refillable Pod System with OLED Display



The UWELL CALIBURN X is a compact, refillable pod kit designed for users looking for more control from a portable pod system. Combining a built-in 850mAh battery, adjustable 5W–20W output, adjustable airflow, OLED display and compatibility with UWELL CALIBURN G and G2 coils, the CALIBURN X brings advanced controls into a compact pod vape design.

Built with an aluminum alloy body and PCTG pod, the CALIBURN X 20W Pod Kit offers a lightweight 46g construction while retaining the familiar CALIBURN form factor. Its OLED screen provides real-time information including battery level, wattage, voltage, coil resistance and puff count, making it easy to monitor your device settings at a glance.

Key Features of the UWELL CALIBURN X

5W–20W Adjustable Wattage

The Uwell Caliburn X 20W gives you adjustable power from 5W to 20W, allowing the output to be configured according to the installed compatible coil and preferred draw. The variable-wattage system is one of the main differences between the Caliburn X and simpler Caliburn pod devices.

850mAh Built-In Battery

The integrated 850mAh rechargeable battery provides a substantial battery capacity for a compact pod system. UWELL designed the CALIBURN X with a built-in battery and USB Type-C charging for convenient everyday use.

OLED Display

A clear OLED screen keeps important device information visible, including:

• Battery level
• Output wattage
• Voltage
• Coil resistance
• Puff count

This makes the Caliburn X OLED display useful for keeping track of your settings and device status without relying on guesswork.

Adjustable Airflow

The CALIBURN X features an airflow adjustment valve positioned on the device, allowing airflow to be adjusted without removing the pod. This gives users greater control over the draw compared with fixed-airflow pod systems.

Dual Activation

The Uwell Caliburn X supports both button firing and draw activation. UWELL’s intelligent firing-channel detection allows the device to detect the selected firing method.

CALIBURN G & G2 Coil Compatibility

One of the biggest advantages of the Caliburn X Pod Kit is its compatibility with the established CALIBURN G coil platform.

Compatible resistance options include:

• 0.8Ω CALIBURN G Meshed-H Coil
• 1.0Ω CALIBURN G Coil
• 1.2Ω CALIBURN G2 Meshed-H Coil

The 0.8Ω coil and 1.2Ω coil are supplied with the standard kit, while the 1.0Ω option is available separately.

Refillable Pod System

The CALIBURN X refillable pod is designed for use with compatible e-liquid and replaceable coils, giving users the flexibility to refill the pod and replace the coil rather than replacing the entire device.

UWELL lists a 3ml e-liquid capacity for the standard CALIBURN X specification. Regional versions can differ; TPD versions are commonly specified at 2ml, so customers should check the exact version supplied.

Pro-FOCS Flavor Technology

UWELL’s Pro-FOCS flavor testing technology is incorporated into the CALIBURN X to support its flavor-focused pod system design.

Compact Aluminum Alloy Construction

The CALIBURN X uses AL6063 aluminum alloy and PCTG construction. At approximately 46g, it remains compact and lightweight while offering a solid aluminum-alloy body.

USB Type-C Charging

The CALIBURN X uses USB Type-C charging and UWELL specifies 5V/2A charging support.

UWELL CALIBURN X Specifications

Specification	Details
Product	UWELL CALIBURN X
Device Type	Refillable Pod System
Maximum Output	20W
Output Range	5W–20W
Battery	850mAh Built-In
Pod Capacity	3ml*
Display	OLED
Activation	Button + Draw Activation
Airflow	Adjustable
Coil Compatibility	CALIBURN G / G2 Coils
Coil Options	0.8Ω / 1.0Ω / 1.2Ω
Charging	USB Type-C
Material	PCTG + AL6063 Aluminum Alloy
Weight	46g
Dimensions	107.4 × 27.5 × 15.6mm

*Capacity varies by regional version; TPD versions may be 2ml.

What’s Inside the CALIBURN X Kit?

The standard UWELL CALIBURN X kit includes:

• 1 × CALIBURN X Device
• 1 × CALIBURN X Empty Cartridge
• 1 × 0.8Ω CALIBURN G Coil – pre-installed
• 1 × 1.2Ω CALIBURN G2 Coil – spare
• 1 × USB Type-C Charging Cable
• 1 × User Manual



CALIBURN X Coil Compatibility

The CALIBURN X works with the UWELL CALIBURN G coil family, giving the device access to multiple resistance options. The 0.8Ω and 1.2Ω versions use mesh coil constructions, while the 1.0Ω option is a standard coil designed around a tighter MTL-style draw.

This compatibility also makes Caliburn X replacement coils widely available within the broader CALIBURN G/G2 ecosystem.

Why Choose the UWELL CALIBURN X?

The UWELL CALIBURN X Pod System combines the portability of a pod vape with controls normally associated with more advanced devices. Its combination of 20W variable wattage, adjustable airflow, OLED display, 850mAh battery, USB-C charging and replaceable CALIBURN G coils gives the CALIBURN X a versatile configuration within the CALIBURN family.

Whether you’re searching for a Uwell Caliburn X pod kit, Caliburn X 20W, Caliburn X refillable pod, Caliburn X replacement coils, Caliburn X 850mAh, Uwell Caliburn X OLED or Caliburn G compatible pod, the CALIBURN X combines these features into one compact pod system.

Frequently Asked Questions

What is the UWELL CALIBURN X?

The UWELL CALIBURN X is a refillable pod system featuring adjustable 5–20W output, an 850mAh built-in battery, OLED display, adjustable airflow and compatibility with CALIBURN G-series coils.

How many watts does the CALIBURN X have?

The CALIBURN X has an adjustable output range of 5W to 20W.

What coils work with CALIBURN X?

The CALIBURN X is compatible with CALIBURN G-series coils, including 0.8Ω, 1.0Ω and 1.2Ω options.

Does the CALIBURN X have adjustable airflow?

Yes. The CALIBURN X has an airflow adjustment valve built into the device.

Does the CALIBURN X have a screen?

Yes. It features an OLED display showing battery level, wattage, voltage, coil resistance and puff count.

What is the CALIBURN X battery capacity?

The CALIBURN X has a built-in 850mAh rechargeable battery.

Does the CALIBURN X use USB-C?

Yes. The device uses USB Type-C charging.

Is the CALIBURN X refillable?

Yes. The CALIBURN X uses a refillable pod with replaceable CALIBURN G-series coils.

What is the CALIBURN X pod capacity?

UWELL’s standard specification lists a 3ml e-liquid capacity. Some regional/TPD versions are limited to 2ml, so the exact capacity depends on the version.

Does CALIBURN X support auto-draw?

Yes. The CALIBURN X supports both draw activation and button firing.

What makes CALIBURN X different from basic CALIBURN pod kits?

The CALIBURN X adds features such as variable 5–20W output, OLED monitoring, adjustable airflow and replaceable G-series coils while retaining a compact pod-system form factor.
